E-VIPO | Medical Protective Mask

· High Filtration Efficiency

· Low Total Inward Leakage

· Low Breathing Resistance

· No Valve 360° Full Protection

· Individual Packaging

· Skin-friendly Inner Non-woven Fabric

· Filtering both Non-oil & Oil Particles

· Comfortable Head Harness

· Easy to Wear & Remove

· Hidden Nose Clip

· Five Layers Respirator

· Two Layers of Melt-blown

· 3D Shaping (Except Flat Mask)

넳 넲

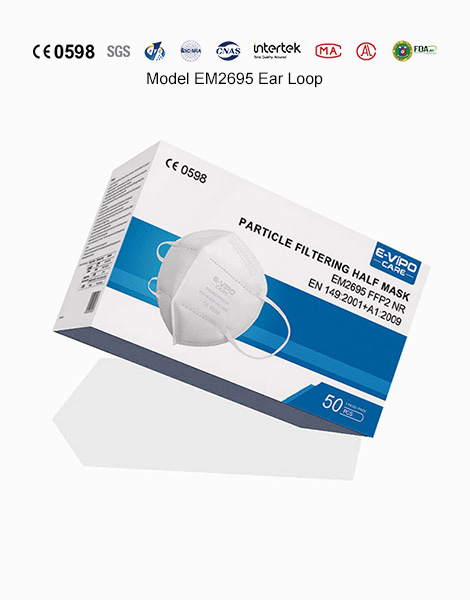

PARTICLE FILTERING HALF MASK

EN149:2001+A1:2009

EU-Type Examination Notified Body

SGS FIMKO OY, Notified Body 0598 / Takomotie 8, FI-00380, Helsinki, Finland

t +358 9 696 361 / f +358 9 692 5474 / www.sgs.com

TECHNICAL DATA
Penetration of Filter Material	Sodium Chloride 95L/min	≤6%
	Paraffin Oil 95L/min	≤6%
Breathing Resistance	Inhalation 30L/min	＜0.7mbar
	Inhalation 95L/min	＜2.4mbar
	Exhalation 160L/min	＜3.0mbar
Total Inward Leakage (TIL)	＜8%
Carbon Dioxide Content of the Inhalation Air	＜1%
Flammability	＜5s
Compatibility with Skin	No Irritation
EU REACH Report	Non Toxic

넳 넲

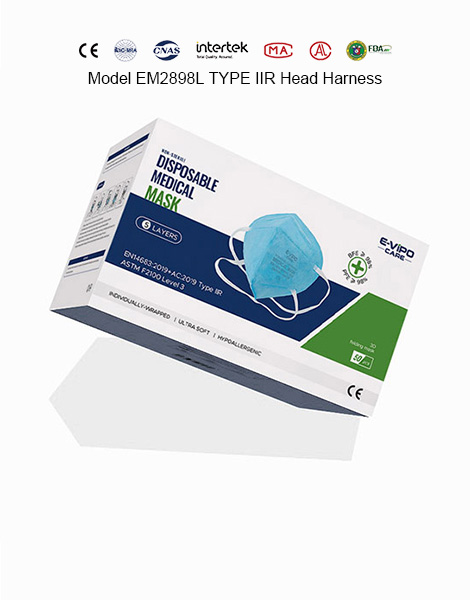

NON-STERILE DISPOSABLE MEDICAL MASK

EN14683:2019+AC:2019 TYPE IIR

ASTM F2100 LEVEL 3

ZOUSTECH S.L.

Pso. Castellana,141–Planta 19, 28046–Madrid, SPAIN

Tel: +34694426446 / Fax: +34917915466

EN14683:2019+AC:2019 TYPE IIR TECHNICAL DATA
Microbial Cleanliness	≤30cfu/g
Baterial Filtration Efﬁciency (BFE)	≥98%
Differential Pressure	<60Pa/cm²
Splash Resistance Pressure	No Penetration at 16.0kPa

ASTM F2100 LEVEL 3 TECHNICAL DATA
Resistance to Penetration by Synthetic Blood	Pressure at 160mmHg
Pressure at 160mmHg	<6mmH₂O/cm²
Flammability	Class 1
Sub-Micron Particulate Filtration Efﬁciency (PFE) at 0.1 micron	≥98%
Bacterial Filtration Efﬁciency	≥98%

넳 넲

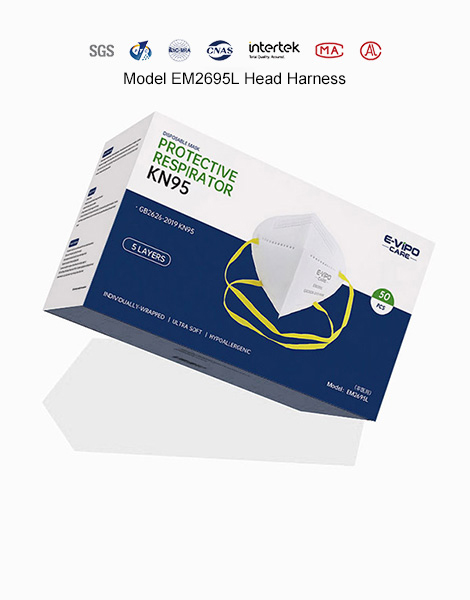

PROTECTIVE RESPIRATOR

GB2626-2019

TECHNICAL DATA
Filtration Efﬁciency	Sodium Chloride 85L/min	≥95%
Breathing Resistance	Inhalation	<210Pa
Breathing Resistance	Exhalation	<210Pa
Head Harness / Ear Loop	Continue 10s	10N
Total Inward Leakage (TIL)	＜8%
Dead Space	＜1%
Flammability	≤5s

· CE Certificate Module B / Module C2 / Module D

· EU Declaration of Conformity

· EU Conﬁrmation of Product Notiﬁcation for TYPE IIR

· Brazil ANVISA

· Brazil INMETRO

· Brazil CA

· Philippines FDA CMDN

Certificate

· PTC EN 149:2001+A1:2009

· SGS EN149:2001+A1:2009

· INTERTEK EN14683:2019+AC:2019 TYPE IIR

· INTERTEK / CNAS ASTM F2100 LEVEL 3

· SGS / PTC GB2626-2019

· SGS Nosepad & Head Harness

· PTC / CMA Melt-blown Fabric

· SGS / INTERTEK EU REACH

· CNAS / CMA Water Repellency & Blood Resistance

· INTERTEK Microbial Cleanliness

· INTERTEK BFE

· CNAS / CMA Biological Evaluation

· INTERTEK Strength of Mask Band

Test Report
